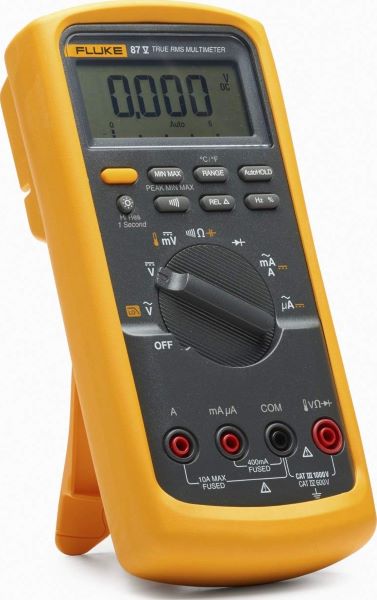

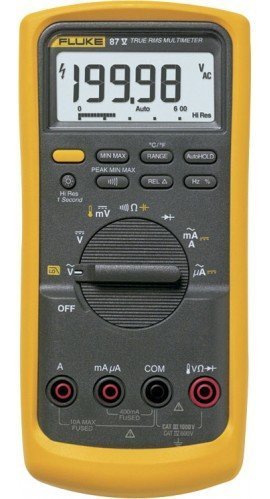

Fluke 87V TRMS Industrial Multimeter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

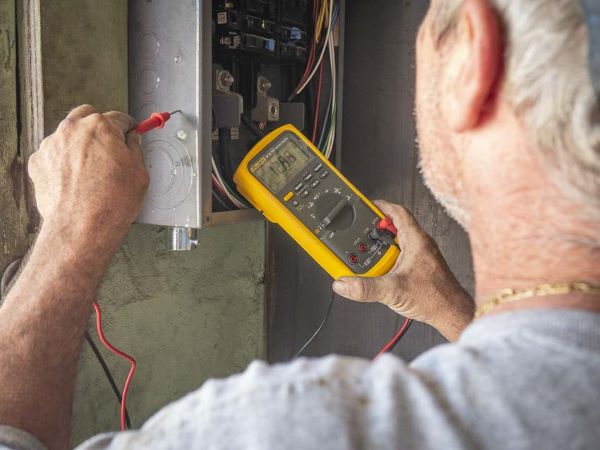

The Fluke 87V TRMS Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations.
This digital multimeter takes the guesswork out of drive system troubleshooting. This electrical multimeter
includes a unique function for accurately measuring noisy at the VFD and at the motor terminals. Special shielding blocks high frequency, high-energy noise generated by large drive systems.
The Fluke 80 Series V of digital multimeters have improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electro-mechanical equipment.
Features
- True-rms ac voltage and current for accurate measurements on non linear signals
- Selectable filter for accurate voltage and frequency measurements on motor drives
- 0.05 % dc accuracy
- 4-1/2 digit mode for precise measurements
- Built-in thermometer lets you carry one less tool
- Large display digits and two-level bright white backlight for increased visibility
- 10,000 µF capacitance range for components and motor caps
- Peak capture to record transients as fast as 250 µs
- Measure up to 1000 V ac and dc
- Measure up to 10 A, 20 A for up to 30 seconds
- Auto and manual ranging for maximum flexibility
- Analog bargraph
- Resistance, continuity and diode test
- Frequency to 200 kHz and % duty cycle
- Min/Max and average recording to capture variations automatically
- Relative mode to remove test lead resistance from low ohms measurements
- Improved sleep mode for long battery life
- Access door for fast battery changes without breaking the calibration seal
- Limited lifetime warranty
- Removable holster with built in test lead and probe storage
- Cat IV 600 V and Cat III 1000 V electrical safety ratings
- Basic test leads and alligator clips
- Bead type thermocouple temperature probe
Specification
| Specification | Value |
|---|---|
| Voltage DC | |
| Max Voltage | 1000 V |
| Accuracy | ±(0.05% + 1) |
| Maximum Resolution | 10 µV |
| Voltage AC | |
| Max Voltage | 1000 V |
| Accuracy | ±(0.7% + 2) True RMS |
| AC Bandwidth | 20 kHz with low pass filter; 3 dB @ 1 kHz |
| Maximum Resolution | 0.1 mV |
| Current DC | |
| Maximum Amps | 10 A (20 A for 30 seconds maximum) |
| Amps Accuracy | ±(0.2% + 2) |
| Maximum Resolution | 0.01 µA |
| Current AC | |
| Maximum Amps | 10 A (20 A for 30 seconds maximum) |
| Amps Accuracy | ±(1.0% + 2) True RMS |
| Maximum Resolution | 0.1 µA |
| Resistance | |
| Maximum Resistance | 50 MΩ |
| Accuracy | ±(0.2% + 1) |
| Maximum Resolution | 0.1 Ω |
| Capacitance | |
| Maximum Capacitance | 9999 µF |
| Accuracy | ±(1% + 2) |
| Maximum Resolution | 0.01 nF |
| Frequency | |
| Maximum Frequency | 200 kHz |
| Accuracy | ±(0.005% + 1) |
| Maximum Resolution | 0.01 Hz |
| Temperature Measurement | -328 to 1994°F (-200 to 1090°C) excluding probe |
| 80 BK Temperature Probe | -40 to 500°F (-40 to 260°C), 2.2°C or 2% whichever is greater |
| Operating Temperature | -4 to 131°F (-20 to 55°C) |
| Storage Temperature | -40 to 140°F (-40 to 60°C) |
| Operating Altitude | 6561' (2000 m) |
| Dimensions | 7.9 x 3.9 x 2.05" (201 x 98 x 52 mm) |
| Weight | 355 g |
| Overvoltage Category | EN 61010–1 to 1000 V CAT III, 600 V CAT IV |
| Battery Life | Alkaline (~400 hours typical, without backlight) |
