EXTECH FORCE GAUGE (475044)
Regular price
1,750.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

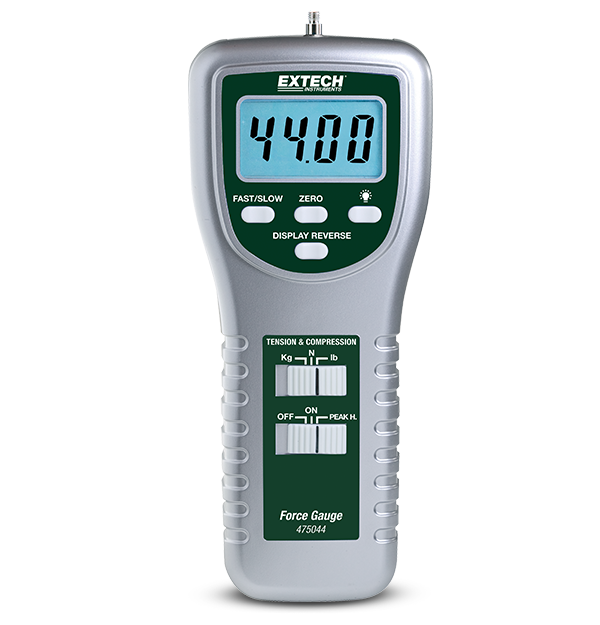

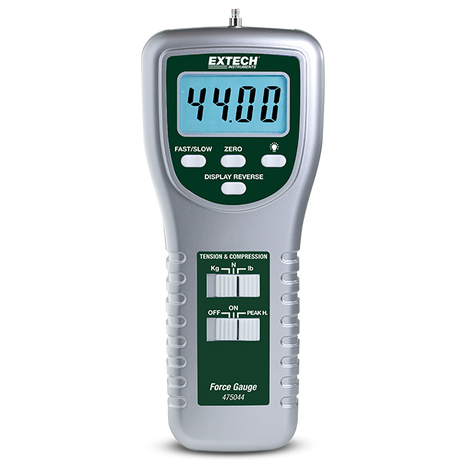

The EXTECH 475044 is a high-capacity force gauge designed for accurate measurement of force in various applications. It features a user-friendly interface and a robust design suitable for industrial use.
Features
- Measurement Capacity: Measures up to 20 kg (44.1 lbs or 196.1 Newtons).
- Display: Equipped with a 5-digit LCD display that reverses to match the viewing angle.
- Accuracy: Basic accuracy of ±0.5%, ensuring reliable measurements.
- Response Times: Selectable fast (0.2 seconds) and slow (0.6 seconds) response times.
- Peak Hold Function: Captures and holds the maximum force applied during measurement.
- Overload Protection: Can withstand overloads up to 30 kg.
- Included Accessories: Comes with a tension rod, carrying case, and four adapters (flathead, cone, chisel, and hook for tension), along with 6 AA batteries.
Specifications
| Specification | Details |
|---|---|
| Model No | 475044 |
| Measurement Capacity | 20 kg (44.1 lbs, 196.1 N) |
| Basic Accuracy | ±(0.5%) |
| Max Resolution | 0.01 lbs, 0.01 kg, 0.05 N |
| Overload Capacity | 30 kg |
| Update Rate | Fast mode: 0.2 secs; Slow mode: 0.6 secs |
| Dimensions | 8.5 × 3.5 × 1.8 inches |
| Weight | 1.4 lbs (650 g) |
| Power Supply | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
