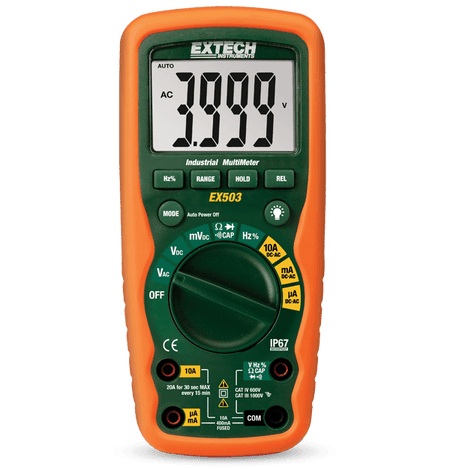

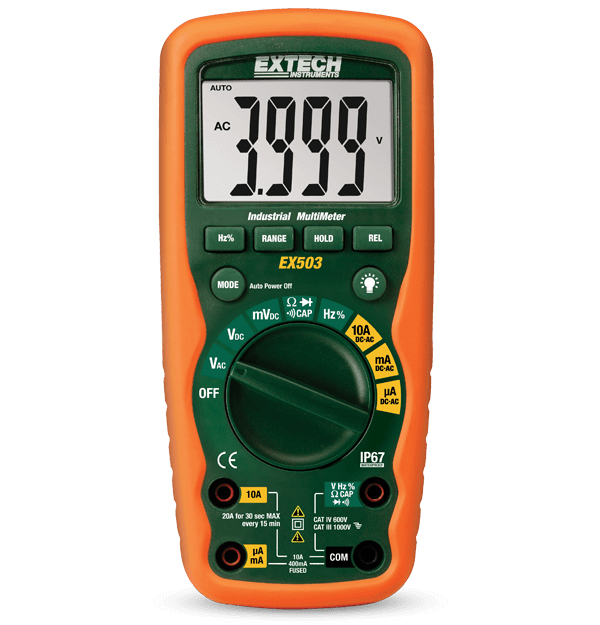

Extech EX503 10 Function Heavy Duty Industrial MultiMeter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech EX503 offers an array of must-have multimeter measurements including capacitance, frequency (dual sensitivity for electrical and electronic applications), diode test, and continuity. Other features include data hold and relative hold, and manual or auto-ranging modes. The latter automatically adjusts the measurement range based on the detected source such as electrical components and electronic equipment. The meter features 0.5 percent accuracy and a CAT IV-600-volt safety rating, protecting users even on outdoor wiring. Includes double-molded test leads, magnetic hanging strap, 9-volt battery, carrying case, and user manual.
Features
• 1000V input protection on all functions
• Dual sensitivity frequency functions
• Large backlit LCD
• Diode open circuit voltage of 2.8V DC
• Auto power off with disable feature
• Complete with double molded test leads,
magnetic hanging strap, Type K bead wire
temperature probe (EX505, EX520 and
EX530), carrying case, and one 9V battery
Specifications
| Specification | Value |
|---|---|
| AC Current | 0.1 µA to 10 A |
| AC Voltage | 0.1 mV to 1000 V |
| Capacitance | 0.01 nF to 100 µF |
| Continuity | Yes |
| DC Current | 0.1 µA to 10 A |
| DC Voltage | 0.1 mV to 1000 V |
| Diode Test | Yes |
| Duty Cycle | 0.1% to 99.9% |
| Frequency | Electrical: 5 Hz to 1 kHz; Electronic: 0.001 Hz to 10 MHz |
| Resistance | 0.1 Ω to 40 MΩ |
| True RMS | Yes |
| Certifications | CE, UL |
| Dimensions | 7.25 × 3.25 × 2.25" (184 × 83 × 57 mm) |
| Display | 4000-count segment LCD |
| IP Rating | IP67 |
| Power | 1 × 9V battery |
| Safety Category | CAT III - 1000 V, CAT IV - 600 V |
| Warranty | 3 years |
| Weight | 12.3 oz (349 g) |
