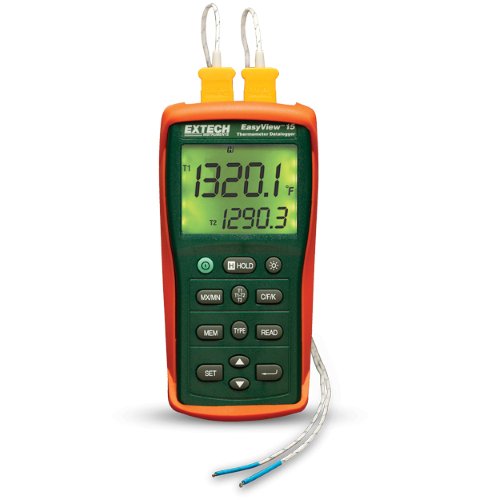

EA15 is an EasyView Dual Input Temperature Datalogger capable of-200 Degrees to 1999 Degrees Fahrenheit and -200 Degree to 1360 Degree Celsius measurements. Timer function displays elapsed time plus the time when minimum and maximum readings are taken. Records Max/Min readings for later recall. Built-in datalogger stores up to 8800 data sets. Complete with built-in stand, protective holster, two Type K bead wire temperature probes and batteries.
Features
-
Compact and rugged design features large backlit display
-
Displays [T1 plus T2] or [T1-T2 plus T1] or [T1-T2 plus T2]
-
Selectable units of °F, °C, K (Kelvin)
-
Wide temperature range with 0.1°/1° resolution
-
Timer function displays elapsed time plus the time when MIN and MAX readings are taken
-
Data Hold function freezes reading on display
-
Auto Power off to save battery life
-
Low battery and overrange indication
-
Records Max/Min readings for later recall
- Dual input accepts Types J, K, E, T, R, S, and N thermocouples
- Built-in datalogger stores up to 8800 data sets
- RS-232 port to transfer data to PC for analysis
- Real Time Clock
- Includes Windows® 95/98/NT/2000/ME/XP/7 compatible software and cable
-
Complete with built-in stand, protective holster, two Type K bead wire temperature probes (-22 to 572°F/-30 to 300°C), and 6 AAA batteries
Specification
-
Thermocouple Type
K: -200 to 1999.9°F (-150 to 1370°C)
J: -200 to 1994°F (-150 to 1090°C)
T: -200 to 752°F (-150 to 400°C)
E: -200 to 1598°F (-150 to 870°C)
R: 35 to 1999.9°F (2 to 1767°C)
S: 35 to 1999.9°F (2 to 1767°C)
N: -200 to 1999.9°F (-150 to 1300°C -
Resolution: 0.1°
-
Basic Accuracy:
±0.05% rdg (+1.5°F/+0.75°C) Types J,K,E,T,N ±0.05% rdg (+4°F/+2°C) Types R,S -
Dimensions: 6 x 2.8 x 1.5" (152 x 72 x 37mm)
-
Weight: 235g
