EXTECH COMBINATION NON-CONTACT AC VOLTAGE AND CURRENT (DVA30)

Out of stock
SKU: DVA30
160.40 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

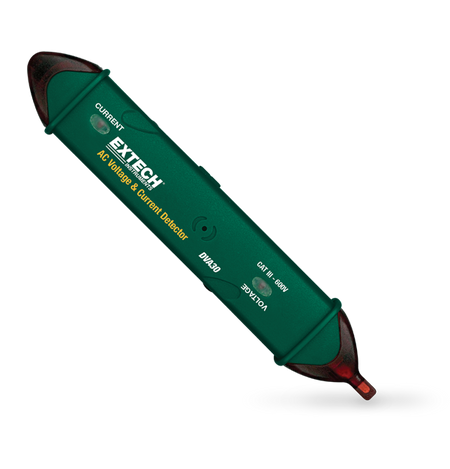

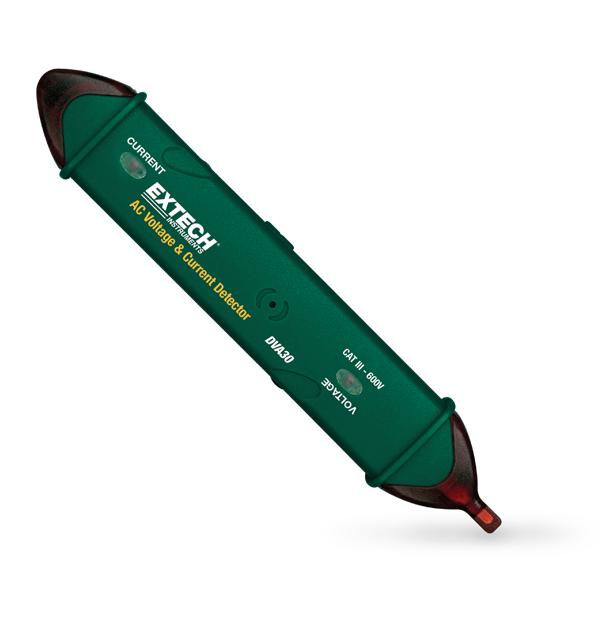

The EXTECH DVA30 is a two-in-one current and voltage detector designed for electrical testing. It allows for non-contact detection of AC voltage and current, making it a versatile tool for electricians and technicians.

Features
  • Wide Detection Ranges:
    • AC Voltage: 12V to 600V
    • AC Current: 200mA to 1000A
  • Non-Contact Operation:
    • Detects voltage and current without direct contact, enhancing safety and convenience.
  • Sensitivity Adjustment:
    • Users can adjust the sensitivity to increase or reduce the sensor trigger threshold.
  • Indicators:
    • Equipped with audible and visual indicators to show the presence of current or voltage.
  • Applications:
    • Ideal for tracing concealed wires, identifying hot wires, and detecting current flow behind walls or in conduits.
Specifications
Specification Details
Model No DVA30
Voltage Detection Range 12 to 600V AC
Current Detection Range 200mA to 1000A AC
Detection Distance 0.2 inches
Frequency Bandwidth 50 to 500Hz
Sensitivity Adjustment Yes
Power Supply 4 × LR44 (1.5V) batteries
Dimensions 7.6 × 1.2 × 0.9 inches
Weight 2.1 oz (60g)
Safety Category CAT III - 600V
Warranty 2 years
