EXTECH 3000A AC Current Flex Clamp (CA3018)

Out of stock
SKU: CA3018
650.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

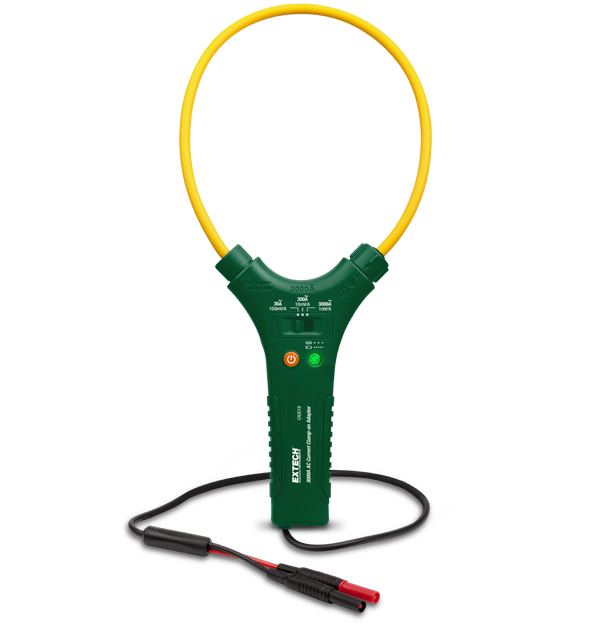

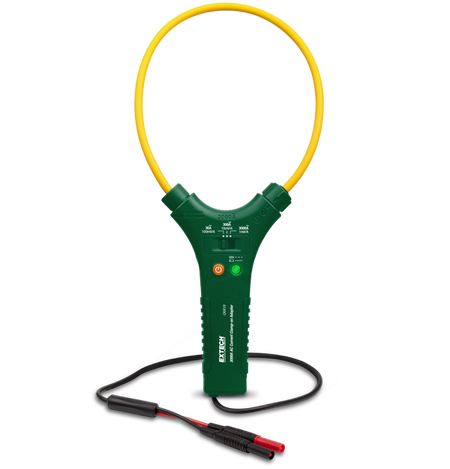

The EXTECH CA3018 is an 18-inch flexible clamp adapter designed for measuring AC current up to 3000A. It is compatible with multimeters and clamp-on meters, making it a versatile tool for electrical measurements.

Features
  • AC Current Measurement: Measures up to 3000A in three ranges: 30.00A, 300.0A, and 3000A.
  • Basic Accuracy: ±3% full scale (FS) at frequencies between 45 to 500Hz.
  • Output:
    • 100mV/A for 30.00A
    • 10mV/A for 300.0A
    • 1mV/A for 3000A
  • Jaw Size: 18 inches (45.7 cm) flexible jaw for easy access around large conductors and bus bars.
  • Cable Diameter: 0.3 inches (7.5 mm) for fitting into tight spaces.
  • Dimensions: 13.8 x 5.1 x 1 inches (350 x 130 x 25 mm).
  • Weight: 7.1 oz (200 g).
  • Safety Rating: UL listed with a CAT IV 600V safety rating.
Specifications
Specification Details
Model No CA3018
AC Current Range 30.00A; 300.0A; 3000A
Basic Accuracy ±3% FS (45 to 500Hz)
Output 100mV/A, 10mV/A, 1mV/A
Jaw Size 18" (45.7 cm)
Cable Diameter 0.3" (7.5 mm)
Dimensions 13.8 x 5.1 x 1" (350 x 130 x 25 mm)
Weight 7.1 oz (200 g)
