BESANTEK Digital Insulation Tester 1KV (Model: BST-IT11)

Out of stock
SKU: BST-IT11
784.11 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

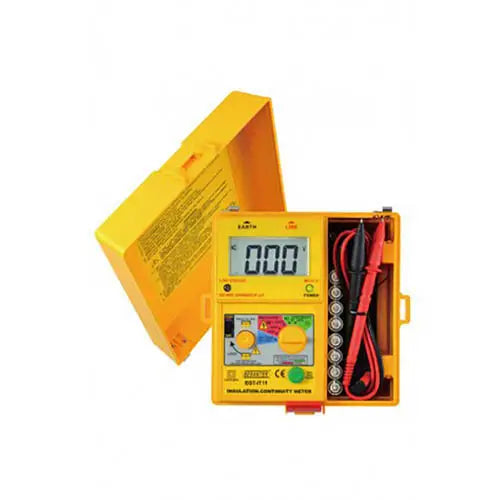

The BESANTEK Digital Insulation Tester BST-IT11 is designed to evaluate wires and cables for proper insulation tolerances. This device is essential for ensuring the safety and reliability of electrical installations.

Features
  • Measures insulation, continuity, and AC voltage.
  • Offers three insulation test voltages: 250V, 500V, and 1000V.
  • Equipped with a large 68 x 34 mm (2.677 x 1.338) LCD display with 2000 counts.
  • Automatic circuit discharge feature for safety.
  • Tests insulation at rated voltage into a 1mA load.
  • Provides a 210mA short circuit testing current for continuity.
  • External voltage warning indication and fuse protection.
  • Complies with BS 16th edition standards.
  • Comes with accessories including an instruction manual, test leads, shoulder belt, fuse (0.5A 250V), and batteries.
Specifications
Specification Details
Model No BST-IT11
Insulation Resistance 0200MΩ (250V), 02000MΩ (500V), 0~2000MΩ (1000V)
Resolution 1 count/100kΩ (250V), 1 count/1MΩ (500V)
Accuracy (1.5%rdg + 5dgt) for 250V, (3%rdg + 3dgt) for 500V, (5%rdg + 3dgt) for 1000V
Continuity Measuring Range 020Ω, 02kΩ
AC Voltage Range 0~500V AC
Power Source 1.5V (AA) x 8
Dimensions 170 (L) x 165 (W) x 92 (D) mm
Weight Approx. 1040g (battery included)
